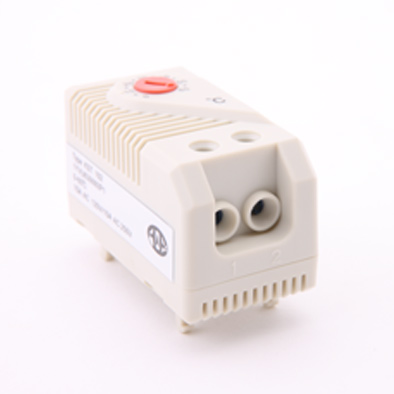

KST series of small-sized thermostat and bimetallic thermostat dedicated for switchgears 0℃~60℃

Description

General

KST series of small-sized temperature controller is mainly used to protect the electrical equipments against freezing in low temperature environments. It can automatically start fans or heaters and adjust temperature and humidity of the surrounding according to on-site situation. The contacts will output action indication signals, when ambient temperature is higher than pre- set temperature, the contact of controller will flip so to protect the equipments from being damaged. The thermostat is a smart controller which makes it to suit to the more complicated environment and protect the equipments more effectively.

Features

  • High accuracy and wide temperature-control range;
  • Small size;
  • High switching performance
  • Clip rail type, easy installation

Standard: GB14536-1996    JB/T3751-1997



Make and break Temperature difference ≤7K

Liftime

> 100 000 cycles
Temp Accuracy ±4℃ Protection Grade IP30
Sensor

Bimetallic thermal materials



Housing Materials



UL94 V-0 light blue flame retardant plastic



ContactType

Units connect dynamically

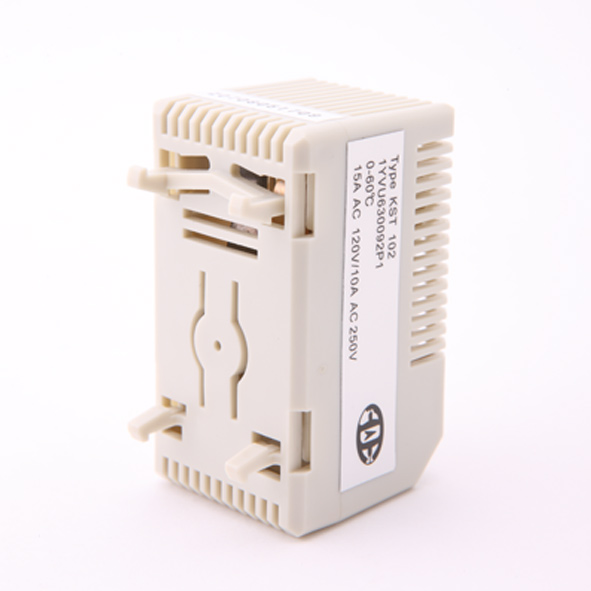

Installation Method



35mm DIN rail(EN50022)



capacity of contact

10A 250VAC

Installation dimension

L*W 35mm*25mm
15A 125VAC

Torque for connection terminals

0.5 Nm


Contact resistance

< 50mΩ

Wire diameter of connection terminals



Rigid conductive wire 0.5~2.5mm²

Flexible conductive wire 0.5~1.5mm²



Insulated resistance

>50MΩ



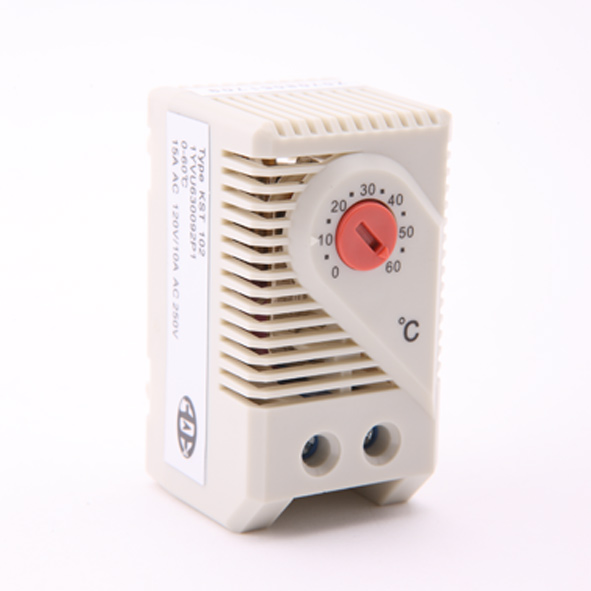

Model and Specifications



Temperature Range Model Type of output contact
10℃(fixed at 10℃,not adjustable) KST101 NC,When the temperature reaches the set value, the contacts will be closed
0℃~60℃ KST102 NC,When the temperature reaches the set value, the contacts will be closed
0℃~60℃ KST201 NO,When the temperature reaches the set value, the contacts will be opened.



Application areas:

High and low voltage switchgears

Terminal box

ZBW

For temperature control and alarming for heaters etc.

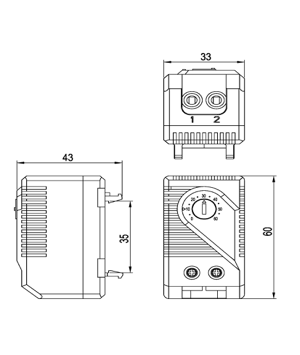

Wiring Diagram and Mounting Dimensions



Notes

  1. Please keep the product away from the heater or the other heating units when installing to ensure high temperature accuracy.
  2. Due to the wide application scope, the user should verify the safe operation of products when using the
