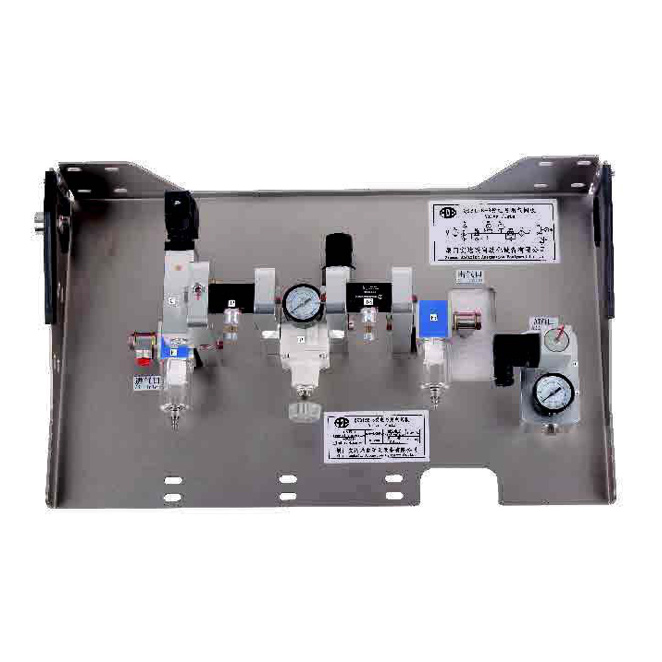

QKB15B-8Pantograph air valve plate


Technical data

Rated input voltage DC110V
Range of input pressure 0.50~1.0MPa
Rated input pressure 0.55MPa
Input pressure (adjustable) 0.20~0.50MPa
Pressure stability 0.2%(Output pressure:0.32~0.45MPa)
Pressure regulation accuracy 0.002MPa
System filtration accuracy ≤5μm
Rated flow 200L/min
Life time ≥85,000 times
Ambient temperature -40℃~ +70℃
Ambient humidity ≤95%
Applicable Medium Clean and Dry Non-corrosive Compressed Gas
