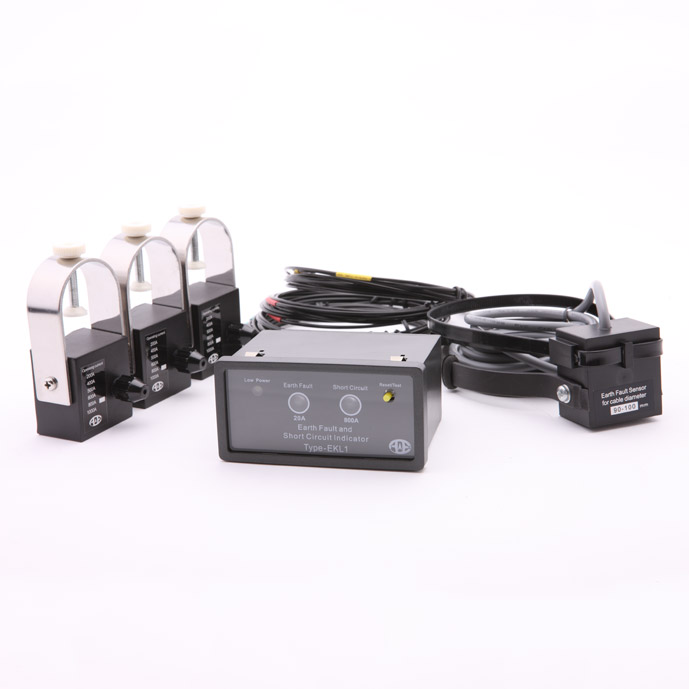

Short Circuit and Earth Fault Indicator EKL1

Description

Short Circuit and Earth Fault Indicator EKL1

(For 3kV-40.5kV Power Distribution System)

Short Circuit and Earth Fault Indicator indicates high voltage power line short circuit fault by detecting the 3 single-phase line-currents and short circuit currents, and the grounding fault by detecting the zero sequence currents. With visual or audible indicators, it helps line patrol staff to fast find out the location where there is a short circuit or grounding fault on the 3kV-40.5kV power distribution networks, switchgears or cable branching units etc.



Short circuit fault alarm indication

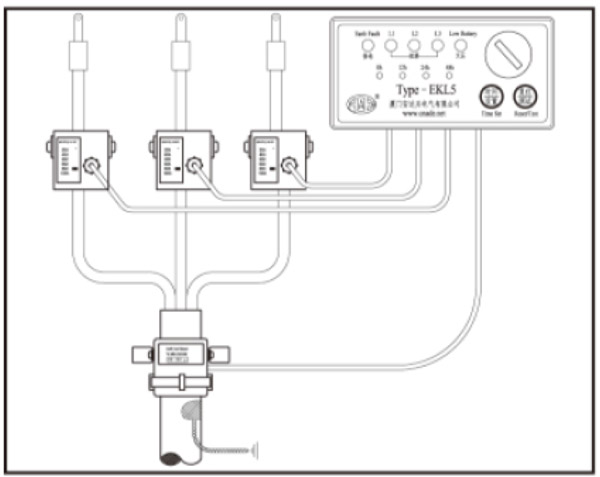

Short-circuit fault sensors installed on 3 single phase cables, monitoring the current changes of the power supply lines, when the current change value reach or exceed Threshold currents for short circuit alarm (this value can be set as per user requirement),the short circuit fault sensors output alarm signal, through optical fiber the signal will be sent to the indicator host, the corresponding fault indicator light will flash to alarm the short circuit fault.



Earth fault alarm indication

Earth fault sensor installed on the bifurcation unshielded part of three-phase cable, detecting the zero sequence current value of the three-phase cable, when its value reach or exceed Threshold currents for grounding fault alarm (this value can be set as per user requirement), the earth fault sensor outputs alarm signal through optical fiber, which will be sent to the indicator host, and the earth fault indicator light will flash to alarm the earth fault.



Product Features

  • Short-circuit and earth fault detection with 3 single-phase current sensors, and one grounding current sensor
  • Short-circuit indication (3 single phase L1,L2,L3) by one super bright LED
  • Earth fault indication by one super bright LED display
  • Remote indication via 2 relay contacts
  • Auxiliary power supply: 24V-230V DC/AC or built-in Li-ion battery with low-power-status indication
  • Reset/Test Button
  • Remote reset
  • Auto-reset: 7s/8h/12h/24h reset time for options



Technical Data

Model number EKL1
Voltage level 3kV-40.5kV
Ambient temperature  -25°C to +70°C
humidity ≤95%
 Threshold currents for short circuit alarm 150A-2000A
 Threshold currents for grounding fault alarm 10A-100A
alarm current accuracy ±10%
alarm response time short circuit fault 40ms
grounding fault 40ms
working current stand by ≤10uA
indication alarm ≤0.5mA
auto reset time 7s/8H/12H/24H
auxiliary power supply built-in battery Li-ion 3.6v2.25Ah
external 24V-230V DC/AC
capacity of relay contact 2A 30VDC/1A 125VAC
applicable conductor diameter short circuit sensor type A Φ20mm~Φ40mm
type B Φ30mm~Φ50mm
type C Φ50mm~Φ70mm
grounding sensor type A Φ60mm~Φ100mm
type C Φ80mm~Φ130mm
protection class indicator IP40
sensor IP65
fiber cable length for short circuit sensor  1.5m can be customized
fiber cable length for grounding sensor  2.5m can be customized
panel window size (WxH) 92x45mm
indicator size (WxHxD) 96X48x69mm
sensor size (WxHxD) 40x44x27mm

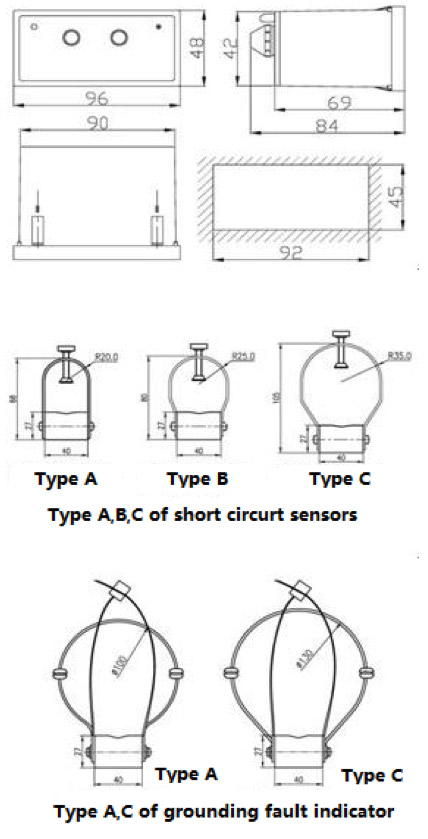

Product Dimensions

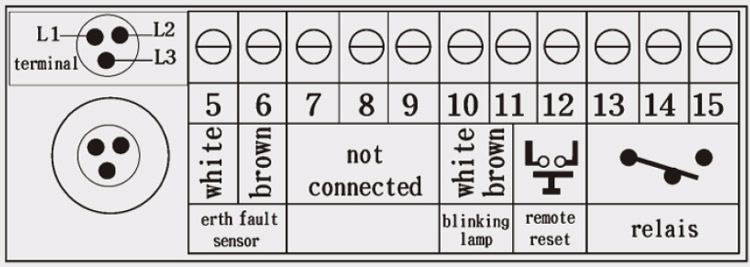

Terminal Definitions

No. Marks Definitions
L1 Terminal Optic fiber terminal of short circuit sensor for Phase L1
L2 Optic fiber terminal of short circuit sensor for Phase L2
L3 Optic fiber terminal of short circuit sensor for Phase L3
5 White Earth Fault Sensor White cable terminal of earth fault sensor
6 Brown Brown cable terminal of earth fault sensor
7 not connected not connected
8
9
10 White Blinking Lamp White cable terminal of external alarm device.
11 Brown Brown cable terminal of external alarm device.
11 Remote Reset Remote reset terminal
12
13 Relay Common contact of fault signal remote transmission relay
14 Normally-closed contact of fault signal remote transmission relay
15 Normally-open contact of fault signal remote transmission relay

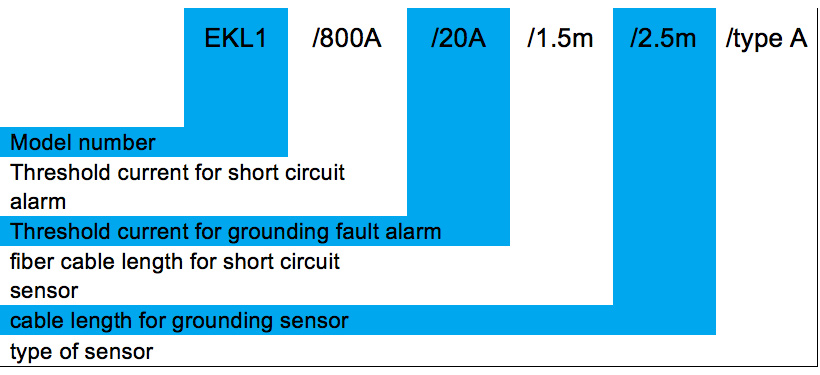

Ordering Information
