Motorized operating mechanisms AD DC 4 – Q / AC220

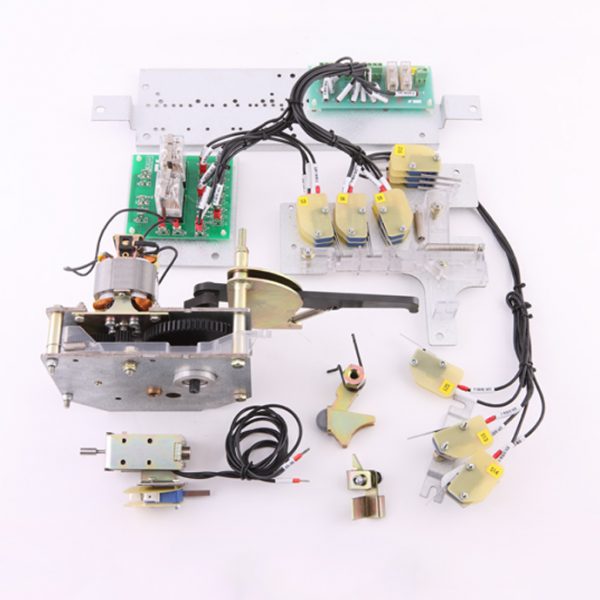

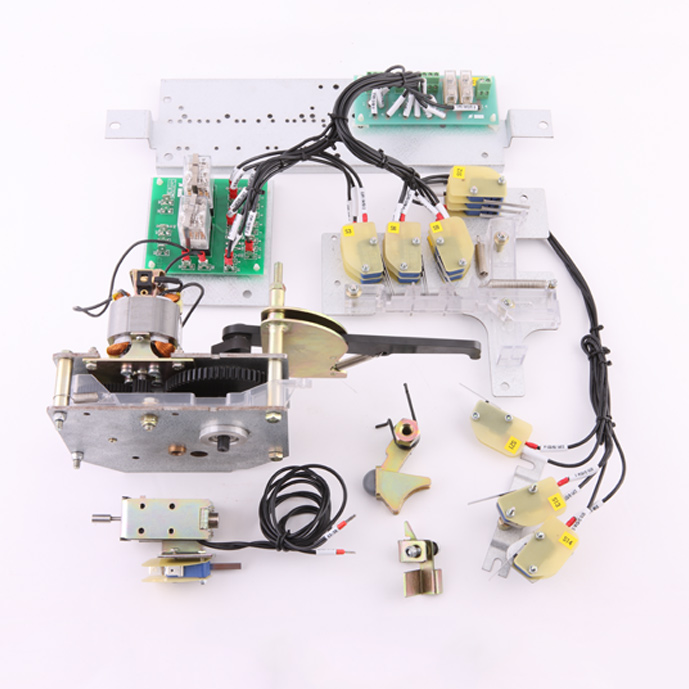

ADDC series of motorized operating mechanisms can be used in various M.V. switchgears and ring main units. It can store energy for make-and-break of circuit breakers with motorized functionality. The system consists of motor, gear driving device, control unit and wire plug-in unit.
- Remote/local switching and local make-and-break of switches
- local and remote indication of the status of load switches, earth switches and fuses
- Plug-in type of wiring makes it easy for on-site installation
AD DC 2 – A/ AC220
DC– motorized operating mechanisms
Q– applicable module
ADDC4 series are applicable for modules of Schneider SM6 & SC6 cabinets.The main components are all from international famous brands and the structural parts are all made of superior materials. This series of products have been supplied to ABB for a long time.
ADDC4-Q：Be applicable for the QM Cabinet of Schneider SM6 & SC6
ADDC4-I： Be applicable for the IM Cabinet of Schneider SM6 & SC6

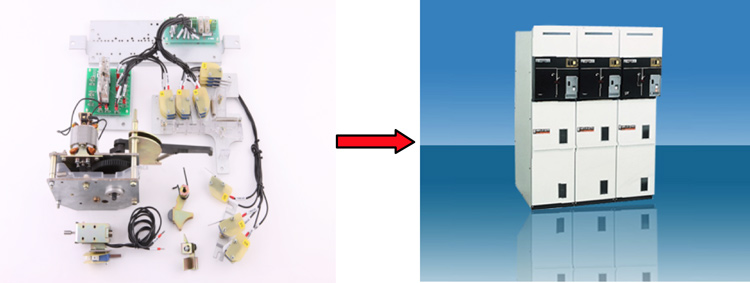

ADDC4-Q motorized operating mechanism is used in the QM cabinet of Schneider SM6 & SC6 series
