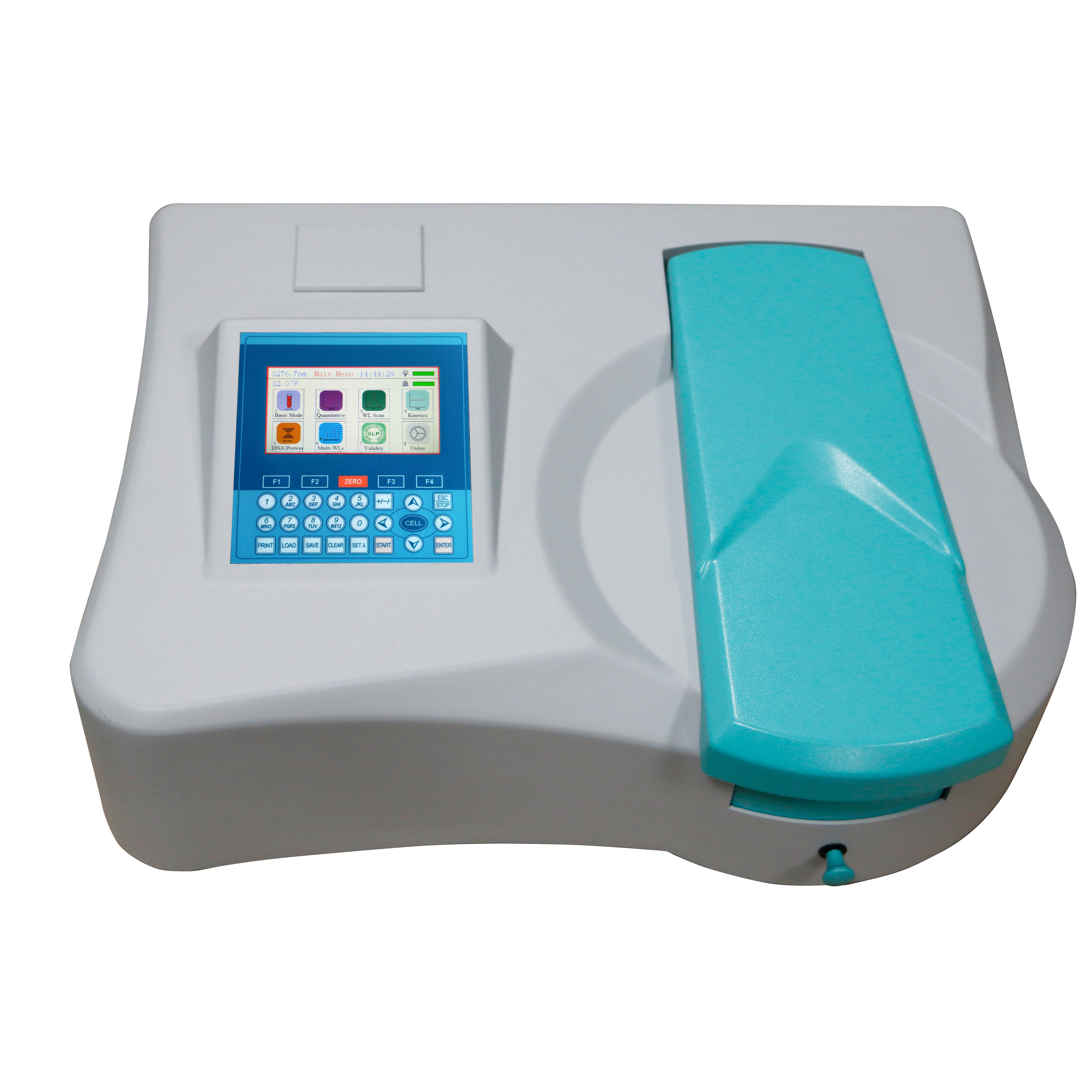

Alpha-1506 Plus Single Beam UV/Visible Spectrophotometer

Description

Features:

  • With embedded computer and optimized optical system ,convenient and easy to use.
  • Operate with both 4.3” touch panel screen and keypads.
  • Abundant but simple instructions lead you no manual operation;
  • Basic photometric mode,Quantitative analysis,Kinetics test,Wavelength scan,DNA/Protein and multi-wavelengths test are available;
  • Alternative fitting and correction methods for Quantitative analysis;
  • Optional built in thermal printer output data and curve;
  • Up to 1000 test data can be saved in local memory and transfer to USB storage;
  • Optional ADX’s Windows®-based PC application software provides more features.Kinetics test(Enzyme reaction rate calculation),DNA/Protein test and Wavelength scan are included.



Specifications

Models Alpha-1506 Plus
Wavelength Range 190 – 1100nm
Spectral Bandwidth 2nm/4nm(optional)
Optical System Single beam, Littrow,Grating 1200 line/mm
Wavelength Accuracy ±0.5nm
Wavelength Repeatability ±0.2nm
Wavelength Resolution 0.1nm
Photometric Range ­0.3 to 3A ;  0-200%T;  -9999 to 9999C
Photometric Accuracy ±0.004A@0.5A , ±0.5%T(0~100%T)
Photometric Repeatability ±0.002A@0.5A , ±0.3%T(0~100%T)
Stray Light ≤0.05%T@220nm&340nm
Baseline flatness ±0.002A(PC running software required)
Stability ±0.002A/hr @500nm ,0A
Data Output 480×272 touch panel LCD
built-in printer & USB storage(optional)
Slave USB Connecting to computer
Size 570×460×230 mm
Weight 14.5kg
