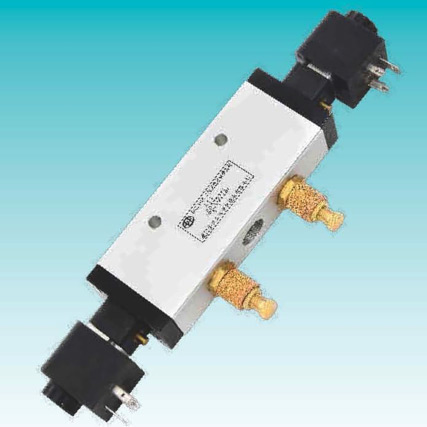

QDC25-10 Two-position and Five-way Solenoid Valve

Description

QDC25 two-position and five-way solenoid valve is a control component used to control the opening and closing of high-voltage isolating switches of the electric locomotive products.

Function

The valve is installed under the baseboard of the high-voltage disconnector, connected to cylinder by control module. Two coils respectively control the 2 directions of the air path ,push the cylinder spindle to move in right and left directions, so to turn on and off the disconnector.

Applications

1. 04、BT25.04A、BT25.07、BT25.07A series of high-voltage isolating switches.
2. The locomotive types: HXD1,HXD1B,HXD1C,HXD3,HXD3B,Malaysia bullet trains, CRH2A、CRH2B、CRH2C、CRH2E、CRH380A、CRH380AL、CRH2A+、locomotive of plateau, the domestic locomotives like “Iron Eight”, “Gold Eight”, ”Gold Twelve”
